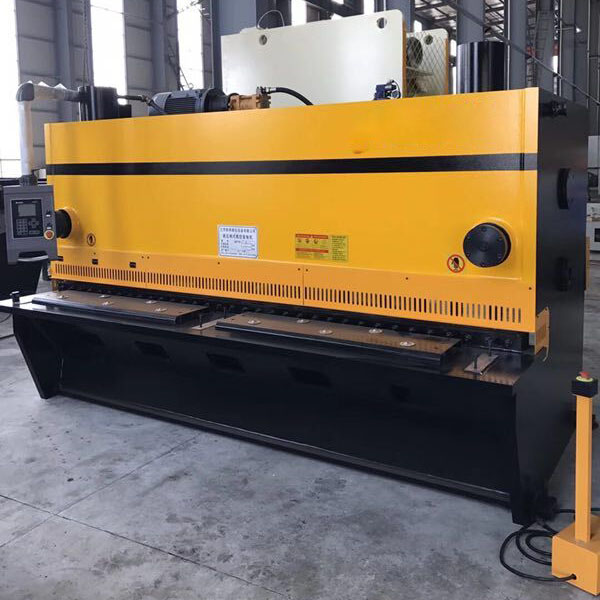

性能特点:
1、数控液压摆式剪板机采用全钢板焊接,墙板材料为Q235A,通过机械振动处理内应力,保证整机有足够的刚性,有效地提高了工作精度。
2、数控液压摆式剪板机采用液压上传动。
3、数控液压摆式剪板机机床后挡料装置采用DAC310数控控制,配滚珠丝杆,直线导轨。
4、机床采用液压传动,氮气缸回程,同步液压压料脚。其特点:快速、平稳、精度高。
5、数控液压摆式剪板机机床剪切板料强度为450N2,如需剪切其它强度的板料,应相应改变被剪板料的厚度。
6、数控液压摆式剪板机液压系统采用插装集成系统,封闭式油箱,止通式吸油滤油器,主要管路设有防震措施。
7、数控液压摆式剪板机安全保护 。
规格型号 Specification | 可剪板厚 Shearing Thickness | 可剪板宽 Shearing Width | 剪切角度 | 行程次数 Number of Stroke | 后挡料范围 Backgauge Rang | 主电机功率 Motor Power |
mm | mm | (°) | min-1 | mm | KW | |
QC12Y-4x2500 | 4 | 2500 | 1°30' | 20 | 20-600 | 4 |
QC12Y-4x3200 | 4 | 3200 | 1°30' | 18 | 20-600 | 5.5 |
QC12Y-4x4000 | 4 | 4000 | 1°30' | 18 | 20-600 | 7.5 |
QC12Y-6x2500 | 6 | 2500 | 1°30' | 18 | 20-600 | 7.5 |
QC12Y-6x3200 | 6 | 3200 | 1°30' | 14 | 20-600 | 7.5 |
QC12Y-6x4000 | 6 | 4000 | 1°30' | 14 | 20-600 | 7.5 |
QC12Y-6x5000 | 6 | 5000 | 1°30' | 10 | 20-800 | 11 |
QC12Y-6x6000 | 6 | 6000 | 1°30' | 10 | 20-800 | 11 |
QC12Y-8x2500 | 8 | 2500 | 1°30' | 14 | 20-600 | 7.5 |
QC12Y-8x3200 | 8 | 3200 | 1°30' | 10 | 20-600 | 7.5 |
QC12Y-8x4000 | 8 | 4000 | 1°30' | 8 | 20-600 | 7.5 |
QC12Y-8x5000 | 8 | 5000 | 1°30' | 7 | 20-800 | 11 |
QC12Y-8x6000 | 8 | 6000 | 1°30' | 6 | 20-800 | 22 |
QC12Y-10x2500 | 10 | 2500 | 1°30' | 14 | 20-800 | 11 |
QC12Y-10x3200 | 10 | 3200 | 1°30' | 12 | 20-800 | 11 |
QC12Y-10x4000 | 10 | 4000 | 1°30' | 12 | 20-800 | 11 |
QC12Y-10x6000 | 10 | 6000 | 2° | 10 | 20-800 | 15 |
QC12Y-12x2500 | 12 | 2500 | 1°30' | 16 | 20-800 | 18.5 |
QC12Y-12x3200 | 12 | 3200 | 1°30' | 14 | 20-800 | 18.5 |
QC12Y-12x4000 | 12 | 4000 | 1°30' | 14 | 20-800 | 18.5 |
QC12Y-12x5000 | 12 | 5000 | 1°30' | 7 | 20-1000 | 30 |
QC12Y-12x6000 | 12 | 6000 | 2° | 6 | 20-1000 | 37 |
QC12Y-12x8000 | 12 | 8000 | 2°30' | 5 | 20-1000 | 37 |
QC12Y-16x2500 | 16 | 2500 | 2° | 16 | 20-650 | 18.5 |
QC12Y-16x3200 | 16 | 3200 | 2° | 12 | 20-800 | 22 |
QC12Y-16x4000 | 16 | 4000 | 2° | 10 | 20-800 | 30 |
QC12Y-16x6000 | 16 | 6000 | 2° | 8 | 20-800 | 30 |
QC12Y-20x2500 | 20 | 2500 | 2°30' | 5 | 20-1000 | 30 |
QC12Y-20x3200 | 20 | 3200 | 2°30' | 4 | 20-1000 | 30 |
QC12Y-20x4000 | 20 | 4000 | 2°30' | 3 | 20-1000 | 37 |
QC12Y-20x6000 | 20 | 6000 | 2°30' | 3 | 20-1000 | 45 |
QC12Y-25x2500 | 25 | 2500 | 2°30' | 6 | 20-1000 | 45 |
QC12Y-25x3200 | 25 | 3200 | 2°30' | 5 | 20-1000 | 45 |
QC12Y-25x4000 | 25 | 4000 | 2°30' | 5 | 20-1000 | 45 |
QC12Y-32x2500 | 32 | 2500 | 3° | 5 | 20-1000 | 55 |
QC12Y-32x3200 | 32 | 3200 | 3° | 4 | 20-1000 | 55 |
QC12Y-40x2500 | 40 | 2500 | 4° | 5 | 20-1000 | 75 |
QC12Y-40x3200 | 40 | 3200 | 4° | 3 | 20-1000 | 90 |
QC12Y-50x3200 | 50 | 3200 | 3° | 5 | 20-1000 | 90*3 |
QC12Y-50x6000 | 50 | 6000 | 3° | 5 | 90*5 | |
QC12Y-60x3200 | 60 | 3200 | 3°30' | 5 | 90*4 |
